Umí hardwarovou virtualizaci (flag 'vmx'), používáno pro virtualizaci.
computer:~ # cat /proc/cpuinfo processor : 0 vendor_id : GenuineIntel cpu family : 6 model : 15 model name : Intel(R) Core(TM)2 CPU 6320 @ 1.86GHz stepping : 6 cpu MHz : 1596.000 cache size : 4096 KB physical id : 0 siblings : 2 core id : 0 cpu cores : 2 fdiv_bug : no hlt_bug : no f00f_bug : no coma_bug : no fpu : yes fpu_exception : yes cpuid level : 10 wp : yes flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe nx lm constant_tsc pni monitor ds_cpl vmx est tm2 cx16 xtpr lahf_lm bogomips : 3736.47 processor : 1 vendor_id : GenuineIntel cpu family : 6 model : 15 model name : Intel(R) Core(TM)2 CPU 6320 @ 1.86GHz stepping : 6 cpu MHz : 1596.000 cache size : 4096 KB physical id : 0 siblings : 2 core id : 1 cpu cores : 2 fdiv_bug : no hlt_bug : no f00f_bug : no coma_bug : no fpu : yes fpu_exception : yes cpuid level : 10 wp : yes flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe nx lm constant_tsc pni monitor ds_cpl vmx est tm2 cx16 xtpr lahf_lm bogomips : 3733.74
Motherboard Intel D975XBX2
Obsahuje integrovanou LAN kartu (detekuje se jako Intel 82573L Gigabit Ethernet Controller) a integrované audio (detekuje se jako 82801G (ICH7 Family) High Definition Audio Controller).
computer:~ # lspci 00:00.0 Host bridge: Intel Corporation 82975X Memory Controller Hub 00:01.0 PCI bridge: Intel Corporation 82975X PCI Express Root Port 00:1b.0 Audio device: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller (rev 01) 00:1c.0 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 (rev 01) 00:1c.4 PCI bridge: Intel Corporation 82801GR/GH/GHM (ICH7 Family) PCI Express Port 5 (rev 01) 00:1c.5 PCI bridge: Intel Corporation 82801GR/GH/GHM (ICH7 Family) PCI Express Port 6 (rev 01) 00:1d.0 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #1 (rev 01) 00:1d.1 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #2 (rev 01) 00:1d.2 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #3 (rev 01) 00:1d.3 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI #4 (rev 01) 00:1d.7 USB Controller: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev 01) 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev e1) 00:1f.0 ISA bridge: Intel Corporation 82801GH (ICH7DH) LPC Interface Bridge (rev 01) 00:1f.1 IDE interface: Intel Corporation 82801G (ICH7 Family) IDE Controller (rev 01) 00:1f.2 IDE interface: Intel Corporation 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller IDE (rev 01) 00:1f.3 SMBus: Intel Corporation 82801G (ICH7 Family) SMBus Controller (rev 01) 01:00.0 VGA compatible controller: nVidia Corporation G70 [GeForce 7600 GS] (rev a1) 03:00.0 SATA controller: Marvell Technology Group Ltd. Unknown device 6145 (rev a1) 04:00.0 Ethernet controller: Intel Corporation 82573L Gigabit Ethernet Controller 05:04.0 FireWire (IEEE 1394): Texas Instruments TSB43AB23 IEEE-1394a-2000 Controller (PHY/Link)
Paměť RAM GEIL 2GiB DDR2 800MHz
computer:~ # free
total used free shared buffers cached
Mem: 2074492 596520 1477972 0 92824 177184
computer:~ # dmidecode -t memory
# dmidecode 2.8
SMBIOS 2.4 present.
Handle 0x0017, DMI type 16, 15 bytes
Physical Memory Array
Location: System Board Or Motherboard
Use: System Memory
Error Correction Type: Single-bit ECC
Maximum Capacity: 4 GB
Error Information Handle: Not Provided
Number Of Devices: 4
Handle 0x0018, DMI type 17, 27 bytes
Memory Device
Array Handle: 0x0017
Error Information Handle: Not Provided
Total Width: 64 bits
Data Width: 64 bits
Size: 1024 MB
Form Factor: DIMM
Set: None
Locator: J6H1
Bank Locator: CHAN A DIMM 0
Type: DDR2
Type Detail: Synchronous
Speed: 800 MHz (1.2 ns)
Manufacturer: 0x7F7F7F1300000000
Serial Number: 0x00000000
Asset Tag: Unknown
Part Number: 0x434C342D342D34444452322D383030202020
Handle 0x001A, DMI type 17, 27 bytes
Memory Device
Array Handle: 0x0017
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: J6H2
Bank Locator: CHAN A DIMM 1
Type: DDR2
Type Detail: None
Speed: Unknown
Manufacturer: NO DIMM
Serial Number: NO DIMM
Asset Tag: NO DIMM
Part Number: NO DIMM
Handle 0x001B, DMI type 17, 27 bytes
Memory Device
Array Handle: 0x0017
Error Information Handle: Not Provided
Total Width: 64 bits
Data Width: 64 bits
Size: 1024 MB
Form Factor: DIMM
Set: None
Locator: J6J1
Bank Locator: CHAN B DIMM 0
Type: DDR2
Type Detail: Synchronous
Speed: 800 MHz (1.2 ns)
Manufacturer: 0x7F7F7F1300000000
Serial Number: 0x00000005
Asset Tag: Unknown
Part Number: 0x434C342D342D34444452322D383030202020
Handle 0x001D, DMI type 17, 27 bytes
Memory Device
Array Handle: 0x0017
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: DIMM
Set: None
Locator: J6J2
Bank Locator: CHAN B DIMM 1
Type: DDR2
Type Detail: None
Speed: Unknown
Manufacturer: NO DIMM
Serial Number: NO DIMM
Asset Tag: NO DIMM
Part Number: NO DIMM
Grafická karta GigaByte GF 7600GS silent 256MiB DDR2 PCI-Express
computer:~ # glxinfo
name of display: :0.0
display: :0 screen: 0
direct rendering: No
server glx vendor string: SGI
server glx version string: 1.2
server glx extensions:
GLX_ARB_multisample, GLX_EXT_visual_info, GLX_EXT_visual_rating,
GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_OML_swap_method,
GLX_SGI_make_current_read, GLX_SGIS_multisample, GLX_SGIX_hyperpipe,
GLX_SGIX_swap_barrier, GLX_SGIX_fbconfig
client glx vendor string: NVIDIA Corporation
client glx version string: 1.4
client glx extensions:
GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_visual_info,
GLX_EXT_visual_rating, GLX_EXT_import_context, GLX_SGI_video_sync,
GLX_NV_swap_group, GLX_NV_video_out, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
GLX_SGI_swap_control, GLX_NV_float_buffer, GLX_ARB_fbconfig_float,
GLX_EXT_fbconfig_packed_float, GLX_EXT_texture_from_pixmap
GLX extensions:
GLX_ARB_multisample, GLX_EXT_visual_info, GLX_EXT_visual_rating,
GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_SGIX_fbconfig,
GLX_ARB_get_proc_address
OpenGL vendor string: NVIDIA Corporation
OpenGL renderer string: GeForce 7600 GS/PCI/SSE2
OpenGL version string: 1.2 (2.1.0 NVIDIA 96.31)
OpenGL extensions:
GL_ARB_depth_texture, GL_ARB_imaging, GL_ARB_multitexture,
GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_shadow,
GL_ARB_texture_border_clamp, GL_ARB_texture_cube_map,
GL_ARB_texture_env_add, GL_ARB_texture_env_combine,
GL_ARB_texture_env_dot3, GL_ARB_texture_mirrored_repeat,
GL_ARB_window_pos, GL_ARB_texture_non_power_of_two, GL_ARB_vertex_program,
GL_ARB_fragment_program, GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color,
GL_EXT_blend_func_separate, GL_EXT_blend_minmax, GL_EXT_blend_subtract,
GL_EXT_draw_range_elements, GL_EXT_fog_coord, GL_EXT_multi_draw_arrays,
GL_EXT_packed_pixels, GL_EXT_rescale_normal, GL_EXT_secondary_color,
GL_EXT_separate_specular_color, GL_EXT_shadow_funcs, GL_EXT_stencil_wrap,
GL_EXT_texture3D, GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3, GL_EXT_texture_lod,
GL_EXT_texture_lod_bias, GL_EXT_texture_object, GL_EXT_vertex_array,
GL_ATI_texture_mirror_once, GL_HP_occlusion_test,
GL_IBM_texture_mirrored_repeat, GL_NV_blend_square,
GL_NV_texgen_reflection, GL_NV_texture_rectangle,
GL_NV_texture_env_combine4, GL_SGIS_generate_mipmap, GL_SGIS_texture_lod,
GL_SGIX_depth_texture, GL_SGIX_shadow
glu version: 1.3
glu extensions:
GLU_EXT_nurbs_tessellator, GLU_EXT_object_space_tess
visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav
id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat
----------------------------------------------------------------------
0x2c 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 1937059642 1852400175 None
0x2d 24 tc 0 32 0 r . . 8 8 8 8 0 0 0 0 0 0 0 796029813 792358505 None
0x2e 32 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 892549937 809334883 Ncon
0x2f 32 tc 0 32 0 r . . 8 8 8 8 0 0 0 0 0 0 0 976565051 825245036 Ncon
user@computer:~> glxgears 53178 frames in 5.0 seconds = 10617.177 FPS 53494 frames in 5.0 seconds = 10687.008 FPS 53528 frames in 5.0 seconds = 10679.057 FPS
19" CRT monitor Belinea 106080
Používám rozlišení 1280×1024, zvládne však i více.
Disk Western Digital HDD 250GiB SATA II
V Linuxu zařízení /dev/sda
computer:~ # hdparm -tT /dev/sda /dev/sda: Timing cached reads: 6460 MB in 2.00 seconds = 3233.25 MB/sec Timing buffered disk reads: 186 MB in 3.01 seconds = 61.74 MB/sec
computer:~ # hdparm -I /dev/sda
/dev/sda:
ATA device, with non-removable media
Model Number: WDC WD2500KS-00MJB0
Serial Number: WD-WCANKD991801
Firmware Revision: 02.01C03
Standards:
Supported: 7 6 5 4
Likely used: 7
Configuration:
Logical max current
cylinders 16383 16383
heads 16 16
sectors/track 63 63
--
CHS current addressable sectors: 16514064
LBA user addressable sectors: 268435455
LBA48 user addressable sectors: 488397168
device size with M = 1024*1024: 238475 MBytes
device size with M = 1000*1000: 250059 MBytes (250 GB)
Capabilities:
LBA, IORDY(can be disabled)
Standby timer values: spec'd by Standard, with device specific minimum
R/W multiple sector transfer: Max = 16 Current = 16
Recommended acoustic management value: 128, current value: 254
DMA: mdma0 mdma1 mdma2 udma0 udma1 udma2 udma3 udma4 udma5 *udma6
Cycle time: min=120ns recommended=120ns
PIO: pio0 pio1 pio2 pio3 pio4
Cycle time: no flow control=120ns IORDY flow control=120ns
DVD vypalovačka Samsung SH-S183L SATA
V Linuxu zařízení /dev/sr0
computer:~ # hdparm -tT /dev/sr0 /dev/sr0: Timing cached reads: 6406 MB in 2.00 seconds = 3206.47 MB/sec Timing buffered disk reads: 84 MB in 3.12 seconds = 26.90 MB/sec
Zdroj SEASONIC OEM SS-401HT 400W
Silný zdroj, ale je tichý.
ADSL modem ASUS TI4631
Jako operační systém používá Linux. Administruje se přes www rozhraní na IP adrese http://10.0.0.138. Pro spojení s počítačem lze využít jak USB, tak ethernet port, osobně používám ethernet. Obsahuje BusyBox (Login:root Password:adsl1234). Výsledky skenování portů modem, aktualizovaného pro ADSL2+ (Software Version: 3.6.0C_3Y00):
computer # nmap -O 10.0.0.138 Starting Nmap 4.75 ( http://nmap.org ) at 2009-02-03 15:50 CET Interesting ports on mygateway.ar7 (10.0.0.138): Not shown: 996 closed ports PORT STATE SERVICE 21/tcp open ftp 22/tcp open ssh 23/tcp open telnet 80/tcp open http MAC Address: 00:11:2F:EB:4A:CA (Asustek Computer) Device type: WAP|broadband router|printer Running: MontaVista Linux 2.4.X OS details: MontaVista Linux 2.4.17 Network Distance: 1 hop
Další hardware
Skříň 3R Systems R202Li s LCD displejem (ten je spíše pro efekt). Vpředu je 2× USB, audio vstup a výstup. Tiskárna, skener, kopírka Hewlett-Packard Photosmart C5180. A nakonec optická myš s kolečkem a normální klávesnice.
Tiskárna HP Photosmart C5180 All-In-One
Normálně používám připojení přes USB. Lze ji připojit i přes ethernet rozhraní. Je záhodno nainstalovat DHCP server, který přidělí tiskárně IP adresu. Jinak má ta tiskárna (alespoň ta moje) IP adresu 169.254.172.88. Potom ji jako
root nainstaluji přes YaST:YaST -> Hardware -> Printer Printer configuration -> Add -> Network printers -> Print Directly... -> Direct TCP...a zadat IP adresu a provést test. Pak obvyklým způsobem nainstalovat ovladač.

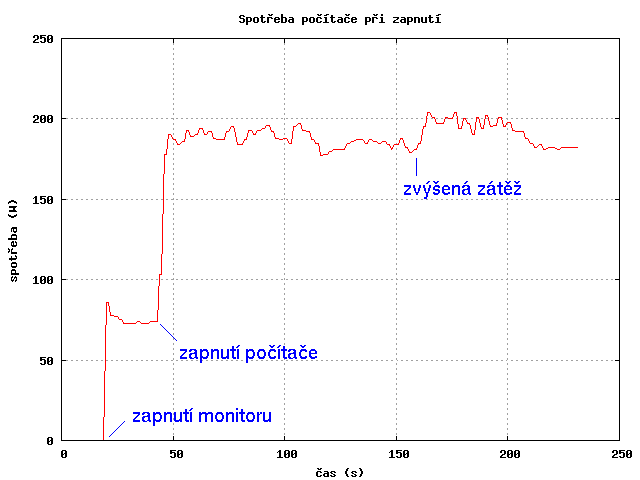

Spotřeba
Počítač a CRT monitor ve vypnutém stavu, ale zapojeny do zásuvky, cca 5W. V provozu pak, podle zátěže, 180W až 215W.
